library(tidyverse)
library(sf)
library(units)
library(patchwork)
source("00_functions.R")
base_map <- read_rds("Data/Datasets/base_map.rds")
bcr <- read_rds("Data/Datasets/bcr_map.rds")
bc <- read_rds("Data/Datasets/bc_map.rds")2 - Create Grids
Create hex grid
We want
- Small enough grid size to detect relevant patterns
- Large enough to smooth over eBird spatial/temporal sampling issues
- Grid size similar to breeding territory size ~ 12ha –> Too small
- Try 10x10km or 20x20km
We also want
- The grid areas to be roughly equivalent (i.e. we need the spatial grid to be create with an equal-area projection)
- So we use the BC Albers projection (CRS 3005) already implemented in
02_grid
To see an image more closely, right-click and select “Open Image in new Tab” (or similar)
Setup
Create grids
- We want grids with dimensions of 10x10 or 20x20 km.
- 10x10 = 100 km2; 20x20 = 400 km2
- This gives 10,000 or 40,000 hectares
as_units(c(10, 20)^2, "km2") |>
set_units("ha")Units: [ha]
[1] 10000 40000Using functions from 00_functions.R…
First we’ll create the larger grid (20x20km)
grid_20 <- bcr |> # Starting area to make grid over
make_grid(size = 20 * 1000) |> # 20km in meters
mutate(grid_id = 1:n(),
area_ha = 40000) # reminder (20x20km = 400km2 = 40,000 ha)And now we’ll split this grid into to the smaller 10x10 km grid
grid_10 <- grid_filter(grid_20, bcr, size = 10 * 1000) |> # 10km in meters
bind_rows() |>
mutate(grid_id = 1:n(),
area_ha = 10 * 10 * 100) # reminder (10x10km = 100km2 = 10,000 ha)Mark BCRs and BC
Mark which grid cells belong to BC and which belong to a specific BCR. Takes the BCR or province status with the largest overlap. We’ll also remove any grids that don’t overlap a BCR (leftover from creating them).
grid_10 <- grid_10 |>
st_join(bcr, largest = TRUE) |>
st_join(bc, largest = TRUE) |>
filter(!is.na(bcr)) |>
mutate(bc = replace_na(bc, FALSE))Warning: attribute variables are assumed to be spatially constant throughout
all geometries
Warning: attribute variables are assumed to be spatially constant throughout
all geometriesgrid_20 <- grid_20 |>
st_join(bcr, largest = TRUE) |>
st_join(bc, largest = TRUE) |>
filter(!is.na(bcr)) |>
mutate(bc = replace_na(bc, FALSE))Warning: attribute variables are assumed to be spatially constant throughout
all geometries
Warning: attribute variables are assumed to be spatially constant throughout
all geometriesCheck that all grids have been assigned to a single BCR/province (should see no grids with more than one entry)
st_drop_geometry(grid_20) |>
count(grid_id) |>
filter(n > 1)[1] grid_id n
<0 rows> (or 0-length row.names)st_drop_geometry(grid_10) |>
count(grid_id) |>
filter(n > 1)[1] grid_id n
<0 rows> (or 0-length row.names)Finally we’ll update the numbering
grid_10 <- mutate(grid_10, grid_id = 1:n())
grid_20 <- mutate(grid_20, grid_id = 1:n())Double check

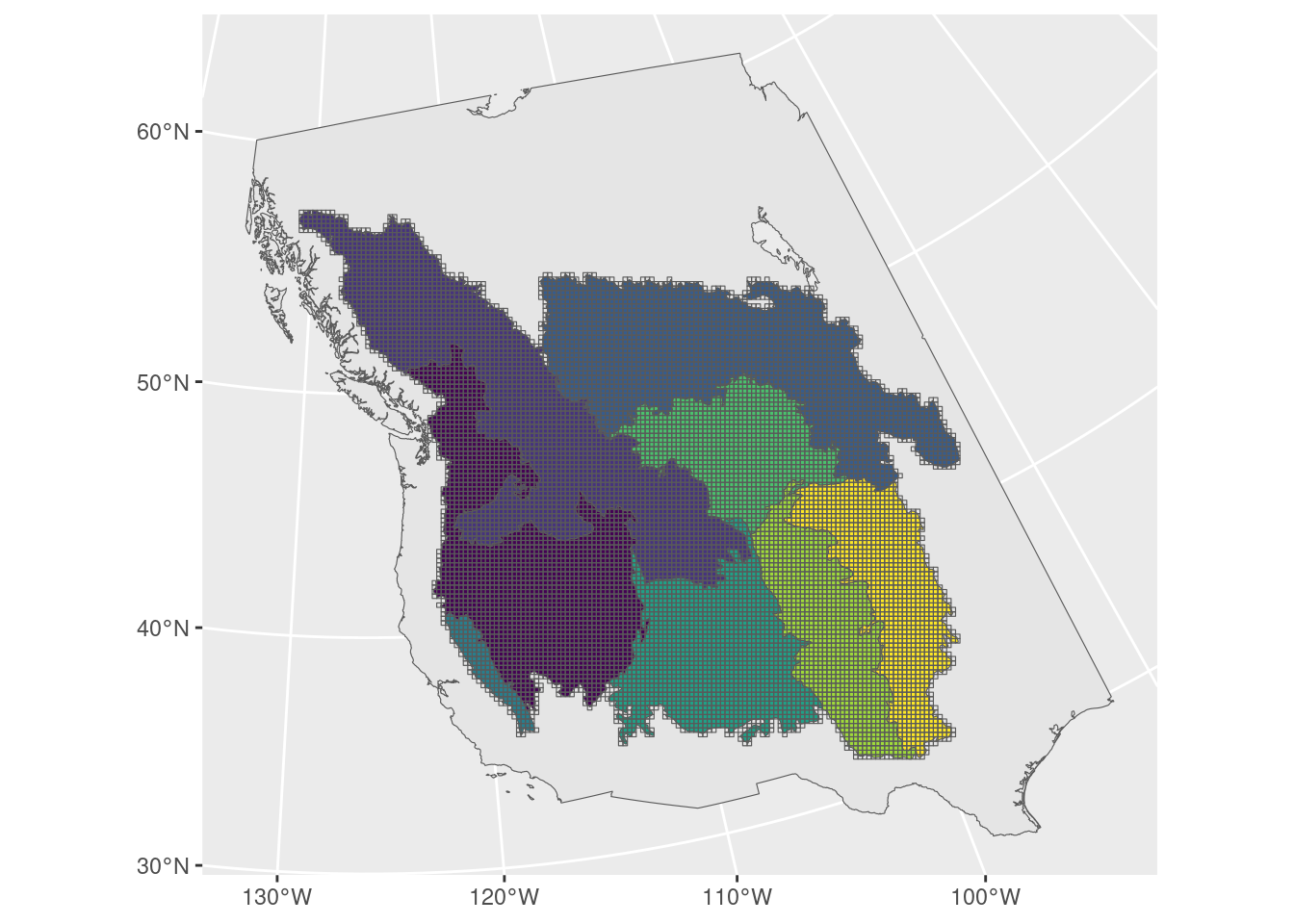

20x20km grid
ggplot() +
geom_sf(data = base_map) +
geom_sf(data = bcr, aes(fill = bcr), show.legend = FALSE) +
geom_sf(data = grid_20, fill = NA) +
scale_fill_viridis_d()

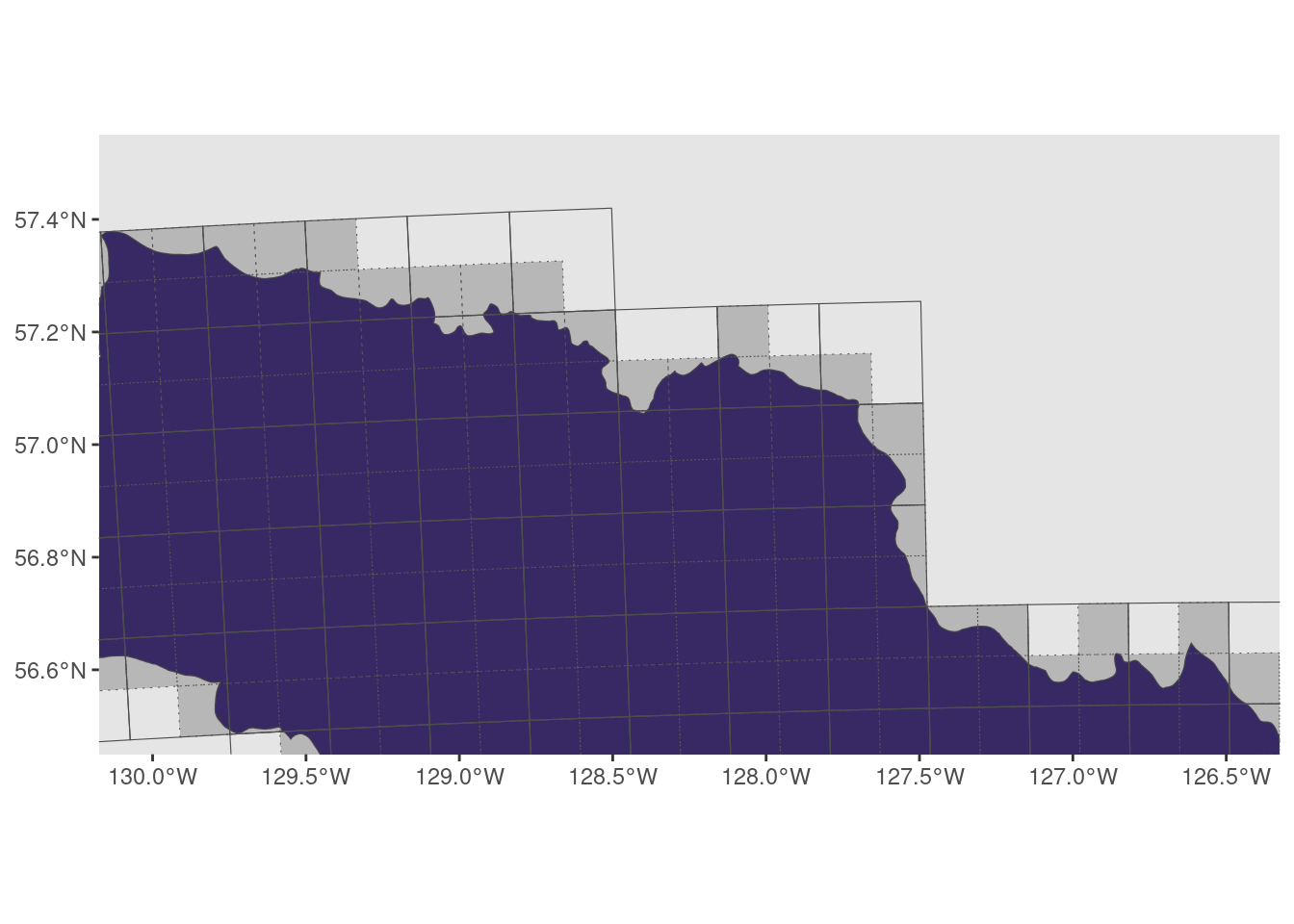

10x10km grid showing a subsection
- dotted grey grid are 10x10
- solid grid are 20x20
ggplot() +
geom_sf(data = base_map) +
geom_sf(data = bcr, aes(fill = bcr), show.legend = FALSE) +
geom_sf(data = grid_10, fill = "black", alpha = 0.2, linetype = "dotted") +
geom_sf(data = grid_20, fill = NA, colour = "grey30") +
coord_sf(crs = 4326, xlim = c(-130, -126.5), ylim = c(56.5, 57.5)) + # Zoom
scale_fill_viridis_d()
Save grids
write_rds(grid_10, "Data/Datasets/grid_10km.rds")
write_rds(grid_20, "Data/Datasets/grid_20km.rds")Session Info
